Designed in 1991 by agricultural pilot G.O. “Chris” Christopher, CP Aerial Nozzles were created to eliminate the need for carrying multiple nozzle tips to adjust flow rates and droplet sizes. The result was the original yellow nozzle, a multi-orifice, multi-plane deflector nozzle that provides multiple application options in a single unit.
For more than 30 years, CP nozzles have been trusted by aerial applicators for their flexibility, ease of adjustment, and proven performance. Independently tested and included in USDA droplet spectrum models, they remain an industry-standard solution for managing flow rates and droplet spectra in the field

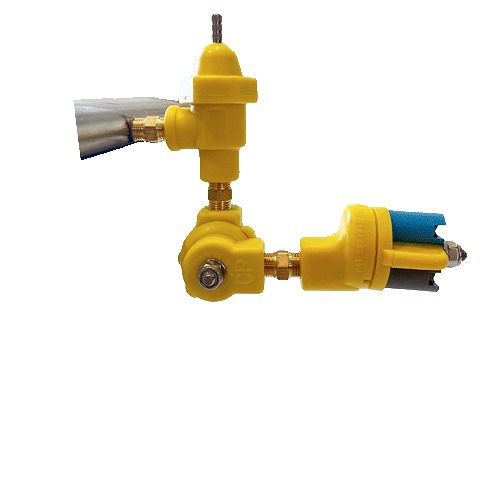

Turn the Deflector to place the desired droplet spectrum.
Turn the Selector Handle to place the desired orifice size for flow rate.

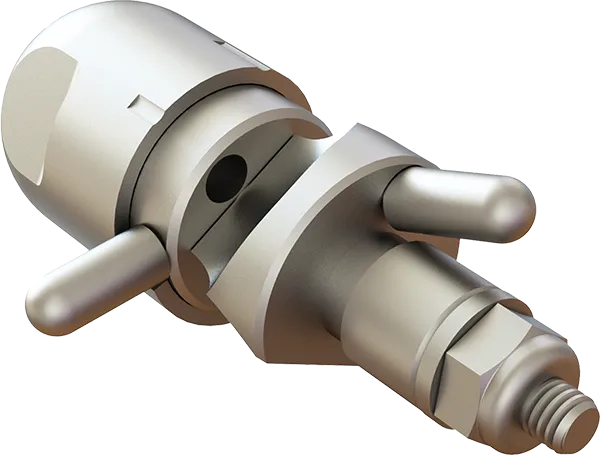

How Standard CPs Work
CP nozzles are engineered with a multi-orifice selector and multi-plane deflector, allowing applicators to independently adjust flow rate and droplet spectrum from a single nozzle body.
Flow rate is determined by the selected orifice size, while droplet size is controlled by the deflector angle. As the deflection angle increases, the resulting droplet spectrum becomes finer. This design provides applicators with the flexibility to quickly adapt to changing application requirements without changing nozzle assemblies.
Turn the Deflector to place the desired droplet spectrum.
Turn the Selector Handle to place the desired orifice size for flow rate.

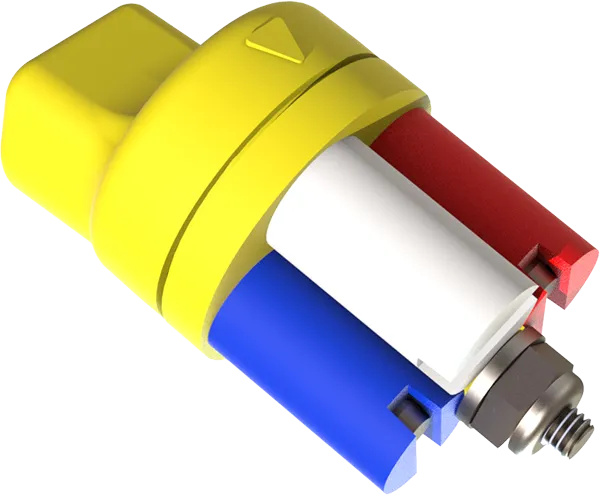

How CP-11TT's Work
The CP-11TT utilizes a unique approach to droplet size management by combining tip angle and nozzle orientation in the airstream. Available in straight-stream and various flat-fan tip angles, the CP-11TT allows applicators to tailor spray characteristics to specific application requirements. By adjusting both the tip configuration and the nozzle’s position in the airstream, operators can influence the droplet spectrum while maintaining the desired flow rate.
This flexible design provides aerial applicators with additional control over spray performance, enabling quick field adjustments to meet changing application conditions and objectives
Te presentamos la nueva aplicación CP Nozzle: más rápida, más inteligente y todo en un solo lugar.
Take the guesswork out of nozzle selection with our enhanced CP Nozzle App. This powerful upgrade to our Legacy Calculator combines CP nozzle calculations with built-in USDA testing data, so there’s no need to switch between websites.
Guarda tus configuraciones de boquillas para acceder a ellas rápidamente en cualquier momento y gestiona tu cuenta fácilmente a través de la web o de Google Play. (Los usuarios de Apple pueden crear una cuenta en línea y acceder a todos los datos guardados a través de la versión web mientras la aplicación para iOS está en desarrollo.)
Streamline your workflow and get the data you need; when and where you need it.
Installing a CP Nozzle is Quick and Simple
Identifying if a Nozzle is Parallel with Airstream
Each nozzle consists of a top section that should face up when on the boom.
