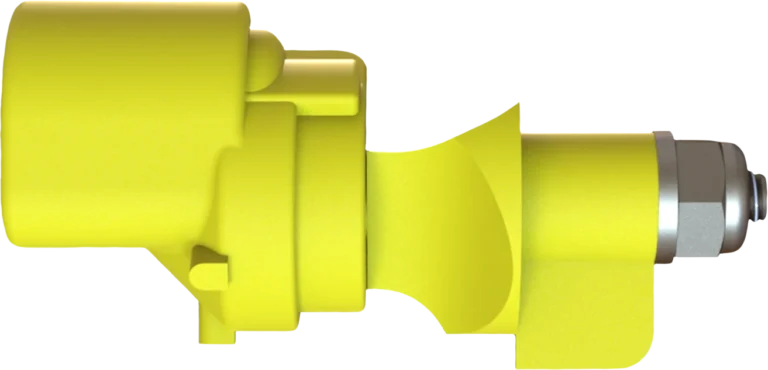

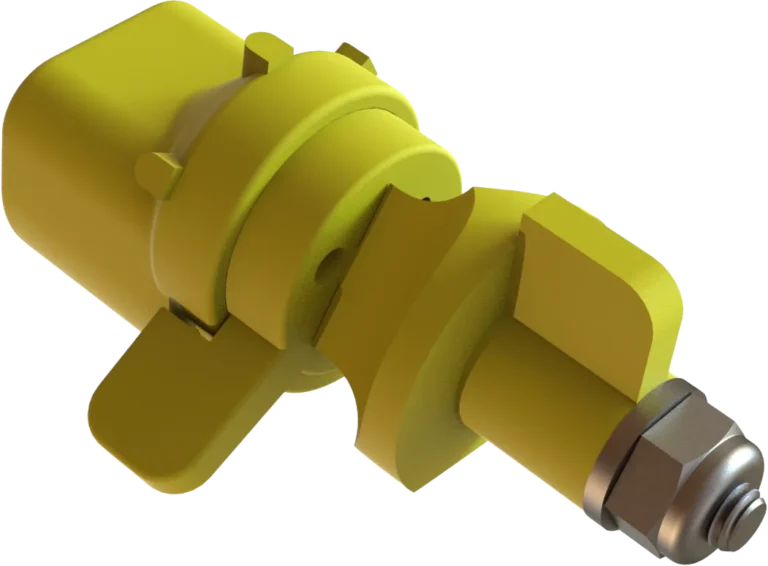

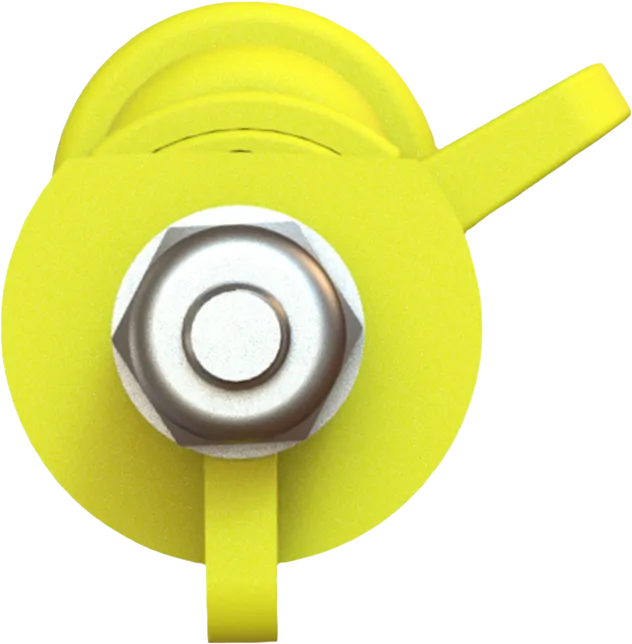

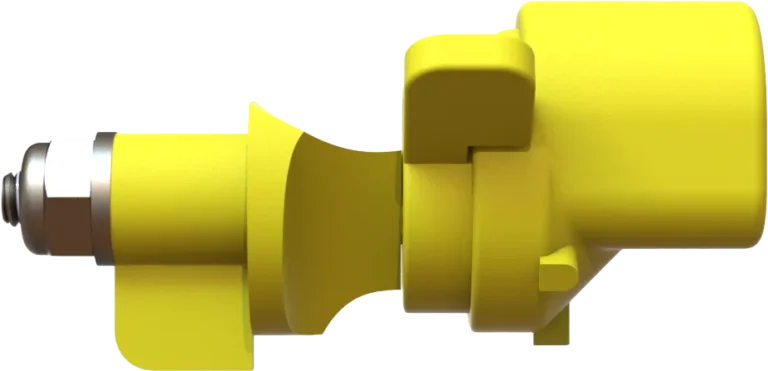

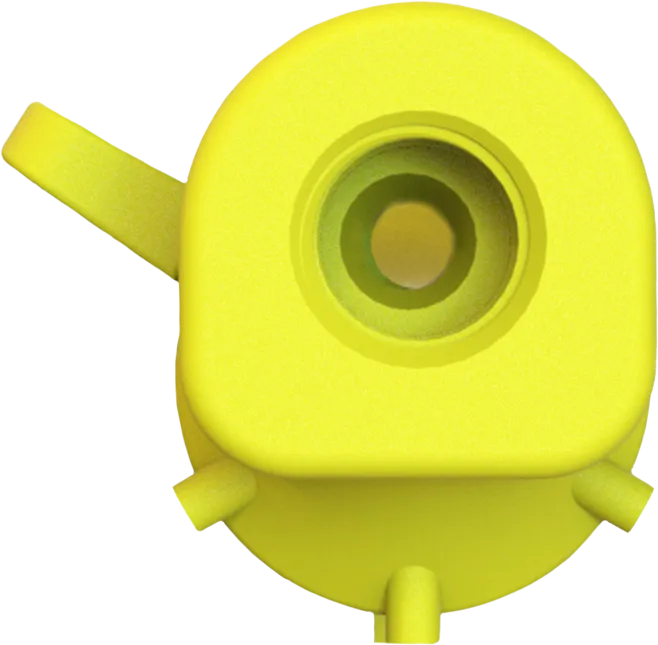

The CP-03-05 is a unique all-poly variation in the standard 03 aerial nozzle line, distinguished by its 5-hole selector plate and the absence of a shut-off position. The additional .093 orifice provides operators with a finer flow increment between the .078 and .125 sizes, enabling rate control in applications where the mid-range orifice is valuable. Like all nozzles in the 03 line, it performs best at aircraft speeds of 120 mph or less on both fixed-wing aircraft and helicopters.

The nozzle features an all-poly five-orifice selector plate with sizes of .062, .078, .093, .125, and .172. The poly 3-way deflector offers deflection planes of 30°, 55°, and 90°, each producing an even flat fan pattern. The 30° plane typically produces larger droplets suited for herbicide applications, while 55° and 90° produce finer droplets for insecticide and fungicide work. Note that this nozzle has no shut-off position on the selector.

Designed for operators who do not require nozzle shut-off, the CP-03-05 provides the added versatility of a .093 orifice, allowing a wider range of flow rates from a single nozzle. All nozzle parts are replaceable for long service life. Use the CP App or the Aerial Nozzle Flowrates Reference to find the optimal orifice and pressure setting for your target GPA.
